Forged Alloy Tines
High-tensile forged steel tines cut and fracture hard, compacted clay without bending or snapping, standing up to full multi-season tillage cycles.
Soil preparation implement · Tractor-mounted
Heavy-Duty Tractor Cultivator for Deep Soil Preparation
Built for the hard, dry terrains of Chhattisgarh and Odisha, our tractor-mounted cultivator uses forged tines to break and prepare soil deep enough for the next sowing cycle. As an authorized direct supplier, Thanvi Enterprise prices it factory-direct with no dealer markup, and our team helps you match it to your tractor before you buy. Request a quote on WhatsApp today.
Factory-Direct Pricing
No hidden dealer markup
FMTTI Certified
Subsidy-eligible equipment
Direct Technical Support
No middleman, local team
Chhattisgarh & Odisha Delivery
Installation guidance included
Smart Tractor Matcher
Find The Right Cultivator For Your Tractor
Answer 3 quick questions: tractor horsepower, your district, and your soil. We suggest the right cultivator and send your choice to our team on WhatsApp. Soil is pre-selected from your district. You can change it.
Auto-detected from your location — please change it if this isn’t correct.
Factory-direct, Chhattisgarh & Odisha
Tractor-Mounted Cultivators
Deep Tillage Engineered for Chhattisgarh & Odisha Soils
From compact 15 HP orchard tractors to 65+ HP commercial custom hiring fleets, Thanvi Enterprise supplies factory-direct tractor cultivators engineered to shatter compacted, sun-baked clay without excessive engine drag.
Choose from 8 specialized series — including government subsidy-approved YUG 15 and NC1 Mini models, extra heavy-duty GAJRAJ 3-support frames, and high-acreage VVN commercial platforms — backed by local spare parts and field guidance across every district.
- High-carbon forged steel tines built for deep, unyielding hard soils
- Rigid box-type and reinforced 3-support central bridge frames
- Govt. Subsidy approved under CG Krishi Yantra Anudan & Odisha DBT
Engineering Superiority
3 Reasons Farmers Choose Our Tractor Cultivators
Concrete machine features engineered for high durability across Chhattisgarh and Odisha farmlands.
3-Support Box Chassis
Heavy tubular box frames with up to 3 central bridge reinforcements eliminate center-sag, torsional twisting, and tractor hitch strain during deep penetration.
Road-Transit Folding Wings
Available quick-fold wing models reduce working widths from 95 inches down to road-legal tractor tracks, easing passage through narrow village lanes and bridges.
Quick Guide
Which Cultivator For Which Tractor HP And Soil?
The Smart Tractor Matcher above gives the same answer. Use this table for a quick check. Final fit depends on your tractor and field, so confirm with our team.
| Tractor HP | Hard clay / Black (Kanhar) / Laterite | Red-Yellow / Sandy Loam / Alluvial | Heavy stubble / Paddy trash |
|---|---|---|---|
| 15–28 HP | MINI Series MAC1 (Rigid Frame) | MINI Series NC1 (Box Frame) | MINI Series NC1 (Box Frame) |
| 30–40 HP | B Series (289B / 309B) | B Series (289B / 309B) | W Series (289W / 309W) |
| 41–50 HP | YUG 15 (9 Tyne, 219 Kg) | C Series (C25 / CLT+) | W Series (289W / 309W) |
| 52+ HP | GAJRAJ F (11 Tyne Folding) | C Series (C25 / CLT+) | GAJRAJ F (11 Tyne Folding) |
Orchard and narrow-row work on compact tractors: MINI Series NC1 or MAC1. Alternatives such as GAJRAJ 9 Tyne for heavy Kanhar clay and VVN for commercial duty are shown in the matcher.
Complete Model Range
Explore All Cultivator Series & Configurations
Choose from 8 distinct series built for specific tractor horsepower bands, frame widths, and field requirements.
✓ Subsidy Approved
40+ HP
YUG Series · 9 Tyne Workhorse

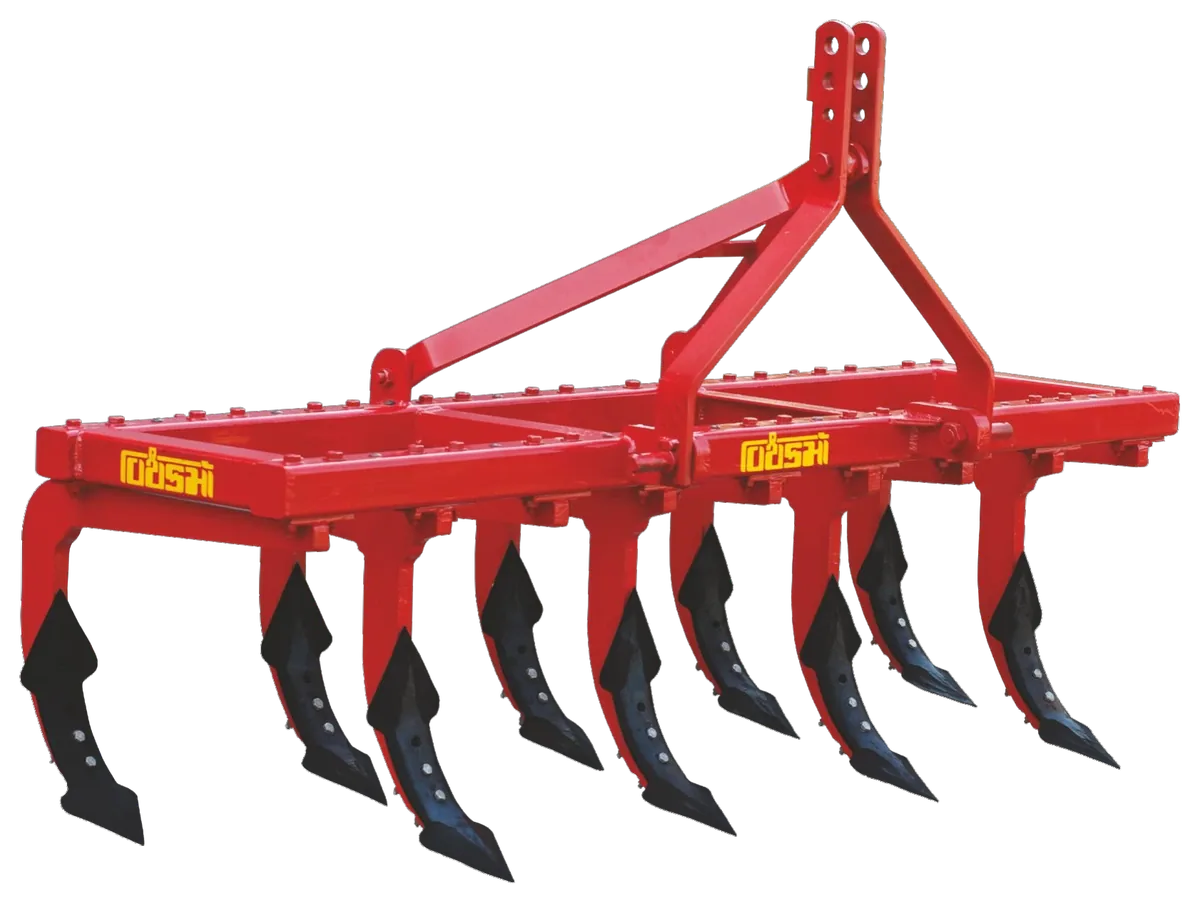

YUG 15 (9 Tyne Heavy Duty)
The flagship tillage implement across Chhattisgarh and Odisha. Reinforced box frame with 19-inch row clearance and forged tynes.
Weight: 219 Kg
Tractor: 40 HP & Above
Tyne: 28 mm
Cut: 77 Inch
Inquire on WhatsApp
45+ HP

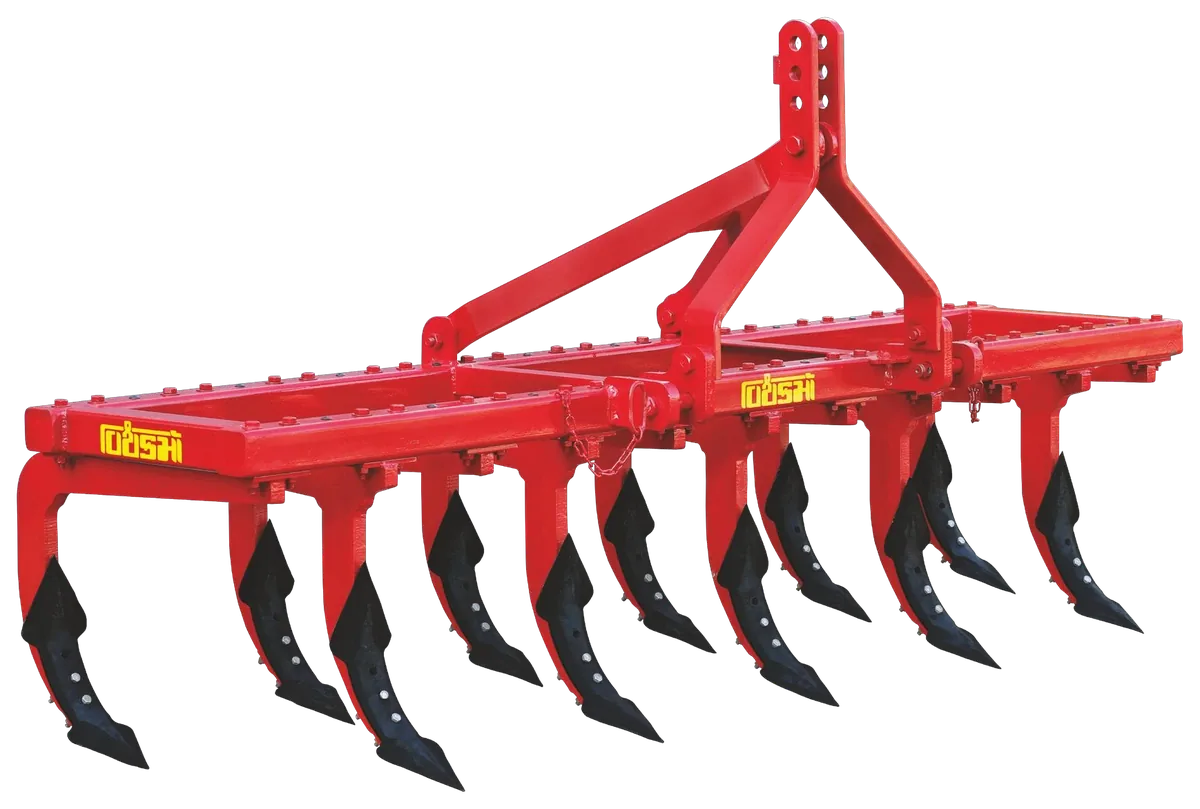

YUG Series · 11 Tyne Fixed
YUG 15 X / 30 X (11 Tyne Fix)
Wide 95-inch cut width covers 20% more field area per pass. Rigid box frame holds stable depth in baked clay soils.
Weight: 271–280 Kg
Tractor: 45 HP & Above
Tyne: 28/30 mm
Cut: 95 Inch
Folding Wings
45+ HP

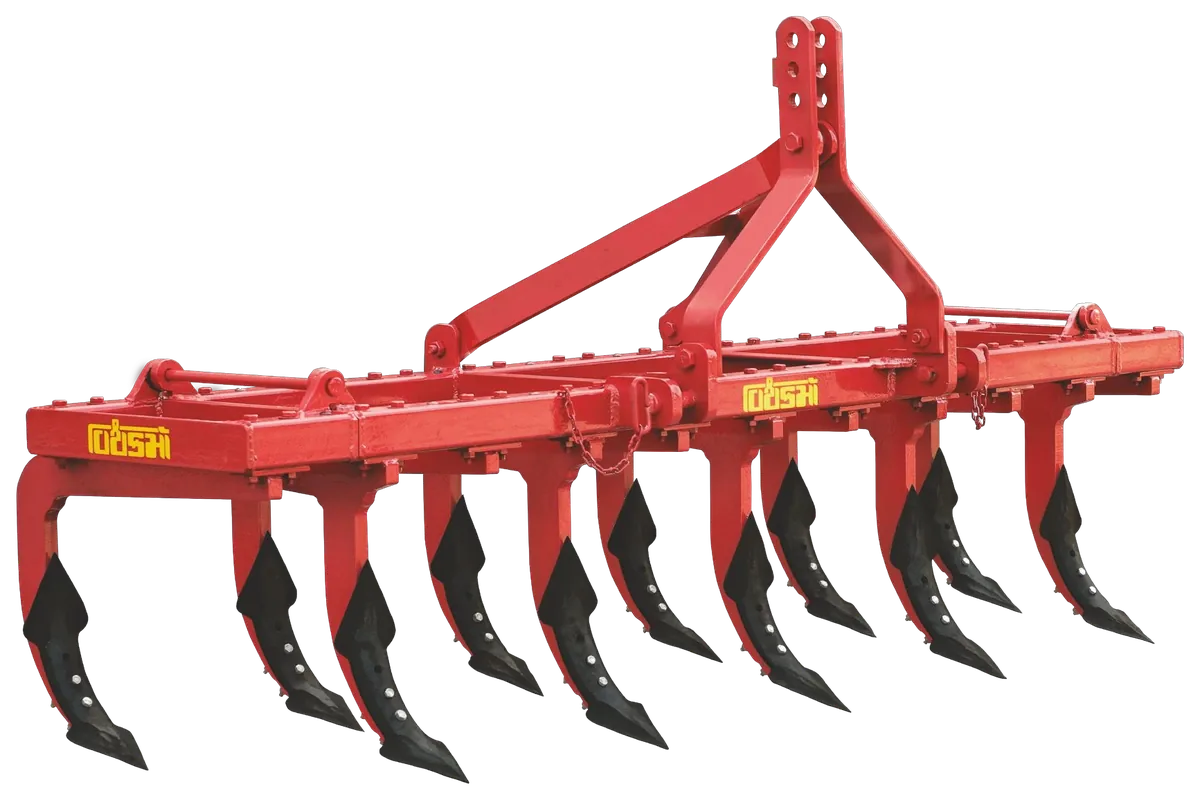

YUG Series · 11 Tyne Folding
YUG 15 F / 30 F (Folding Wings)
Combines full 95-inch high-capacity field cultivation with folding side wings for effortless village road transit.
Weight: 291–297 Kg
Tractor: 45 HP & Above
Tyne: 28/30 mm
Cut: 95 Inch
3-Support Frame
42+ HP

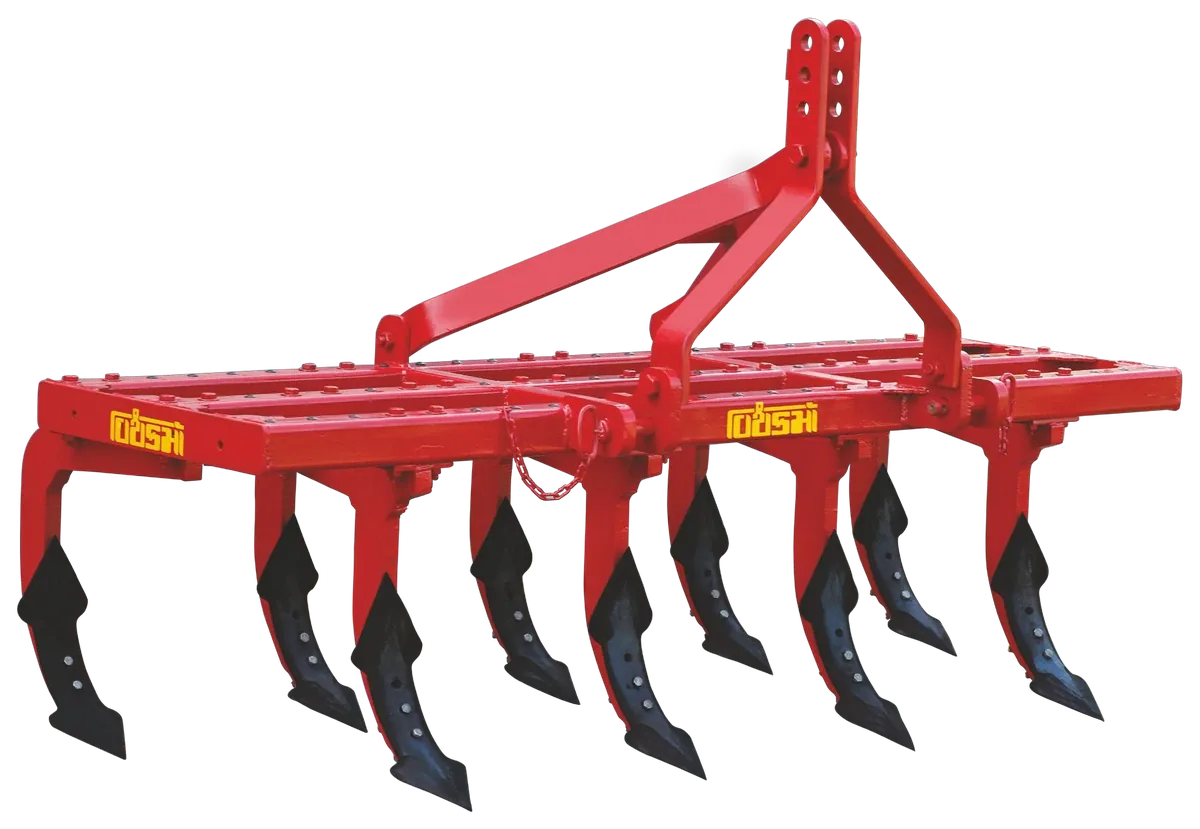

GAJRAJ Series · Extra Heavy Duty
GAJRAJ (9 Tyne 3-Support)
Engineered with a triple central support box bridge. 23-inch front-to-rear clearance eliminates clogging in sticky black soils.
Weight: 240 Kg
Tractor: 42 HP & Above
Tyne: 30 mm
Cut: 77 Inch
3-Support Frame
45+ HP

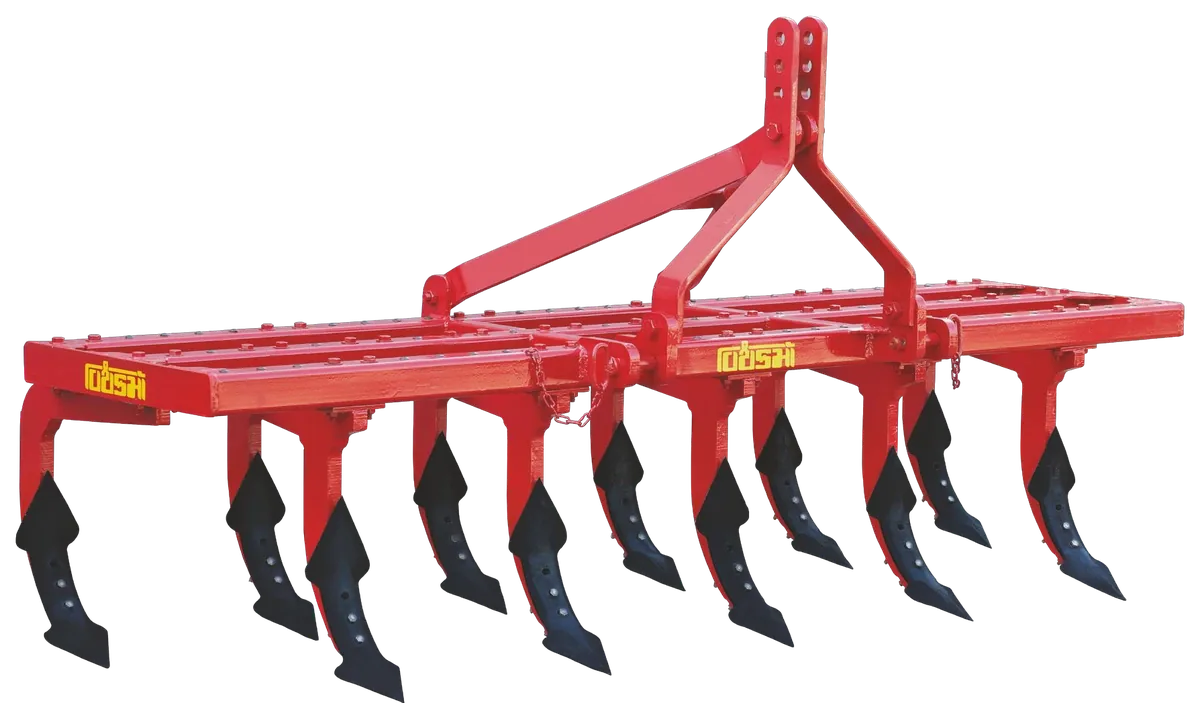

GAJRAJ Series · 11 Tyne Fixed
GAJRAJ X (11 Tyne Fixed)
287 kg reinforced 3-support chassis. Maximum torsional resistance under high tractive load in heavy agricultural belts.
Weight: 287 Kg
Tractor: 45 HP & Above
Tyne: 30 mm
Cut: 95 Inch
3-Support Folding
45+ HP
GAJRAJ Series · 11 Tyne Folding

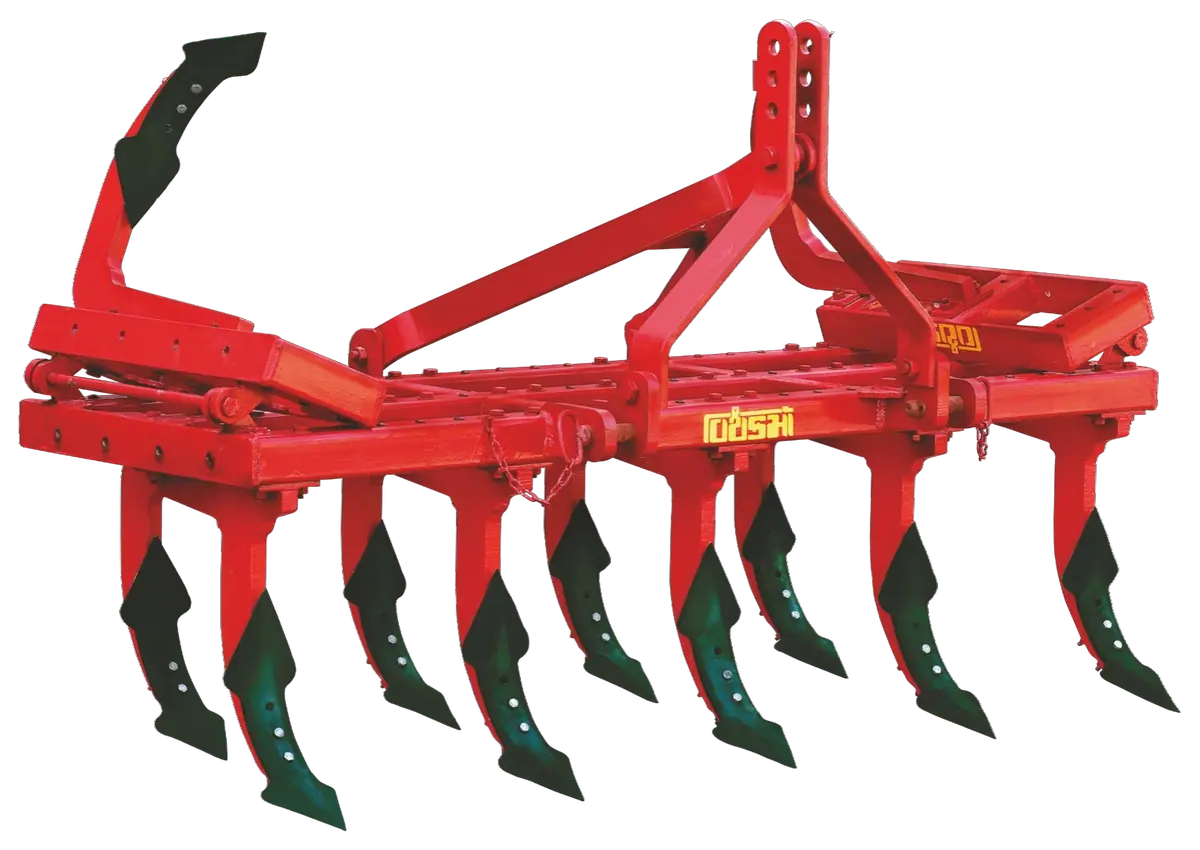

GAJRAJ F (11 Tyne Folding)
Heavyweight 303 kg build with 3-support box construction and folding side assemblies for road safety and high acreage coverage.
Weight: 303 Kg
Tractor: 45 HP & Above
Tyne: 30 mm
Cut: 95 Inch
Commercial Fleet
45–65 HP
VVN Series · Commercial Heavy-Duty

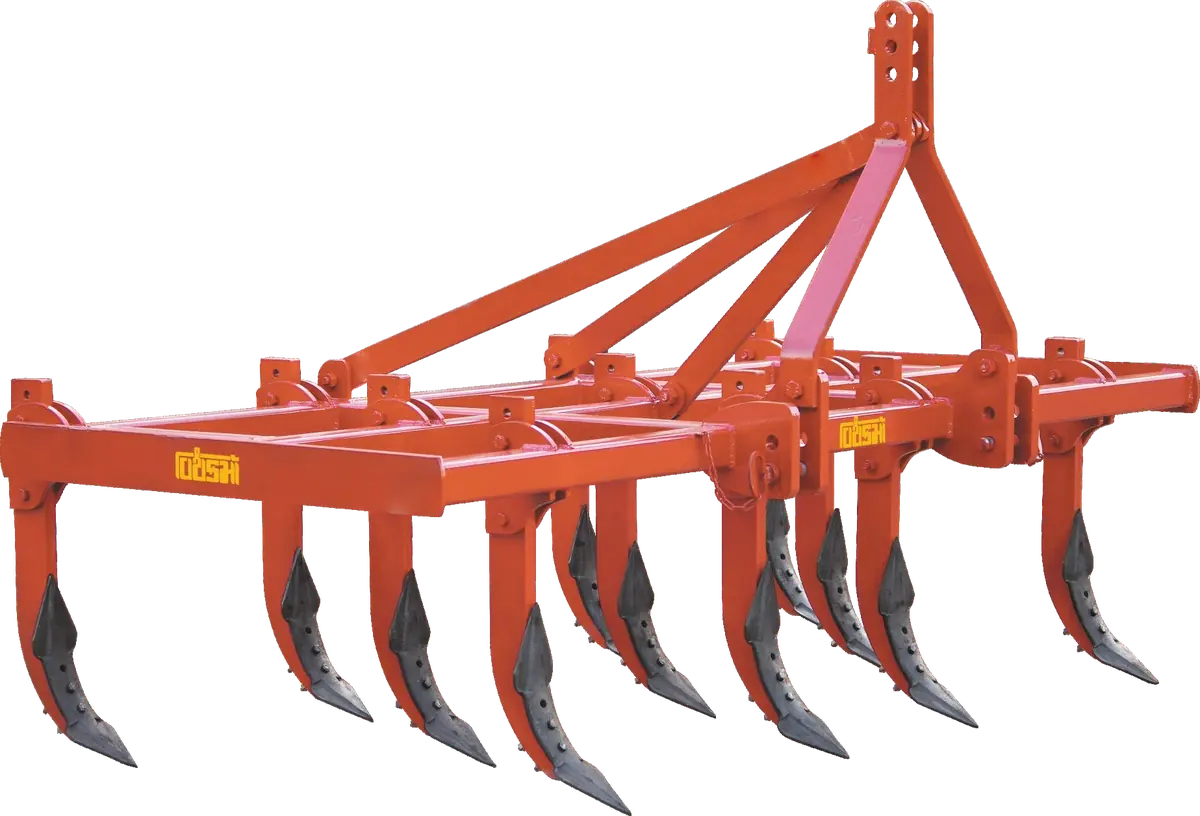

VVN Series (VVN9 / VVN11 / VVN13)
Extreme-duty commercial tillage platform weighing up to 400 kg. Features 20-22" adjustable mast height and up to 113" cut width.
Weight: 305–400 Kg
Tractor: 45–65 HP
Tynes: 9, 11, 13
Cut: Up to 113"
45+ HP
RVD Series · 11 Tyne Rigid Frame

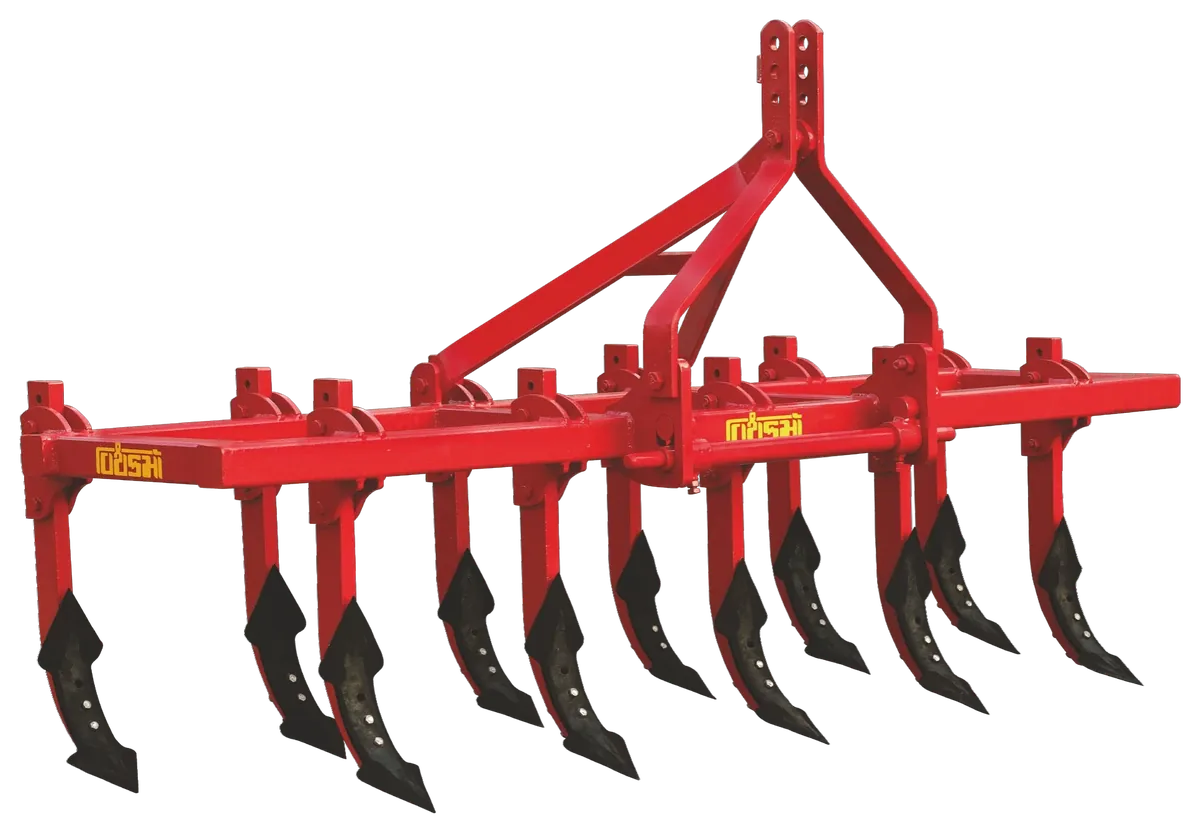

RVD 11 Tyne Rigid Cultivator
Reinforced box frame with 21-inch row spacing and 30 mm tynes. Delivers deep 20–22 inch adjustable soil penetration.
Weight: 293 Kg
Tractor: 45 HP & Above
Tyne: 30 mm
Cut: 95 Inch
✓ Subsidy Approved
15–28 HP
MINI Series · Compact Tractor Tillage

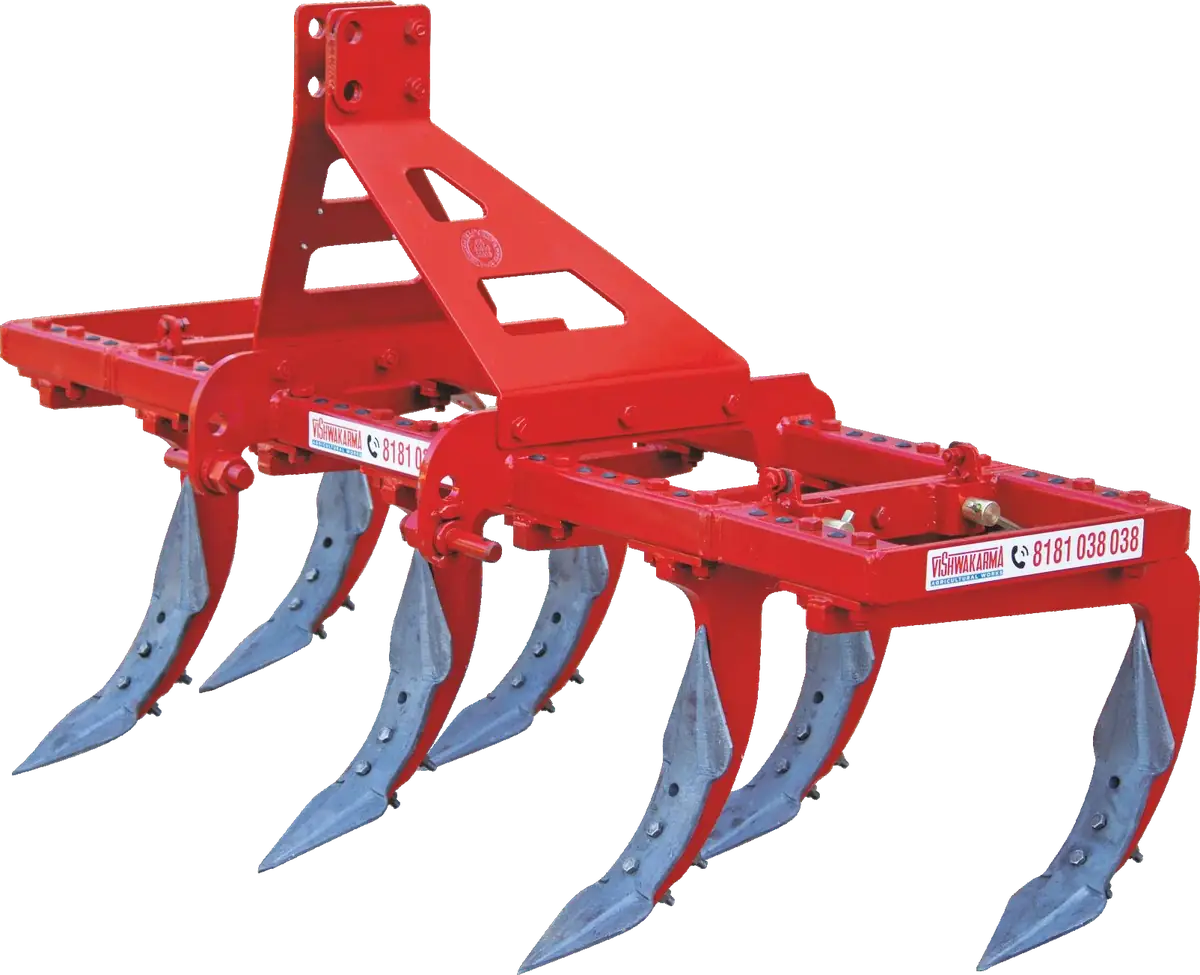

MINI Series NC1 (Box Frame)
Govt. subsidy approved for compact mini tractors. 115 kg lightweight box frame preserves tractor fuel and prevents traction slippage.
Weight: 115 Kg
Tractor: 15–28 HP
Tynes: 7 (25 mm)
Cut: 59 Inch
18–28 HP

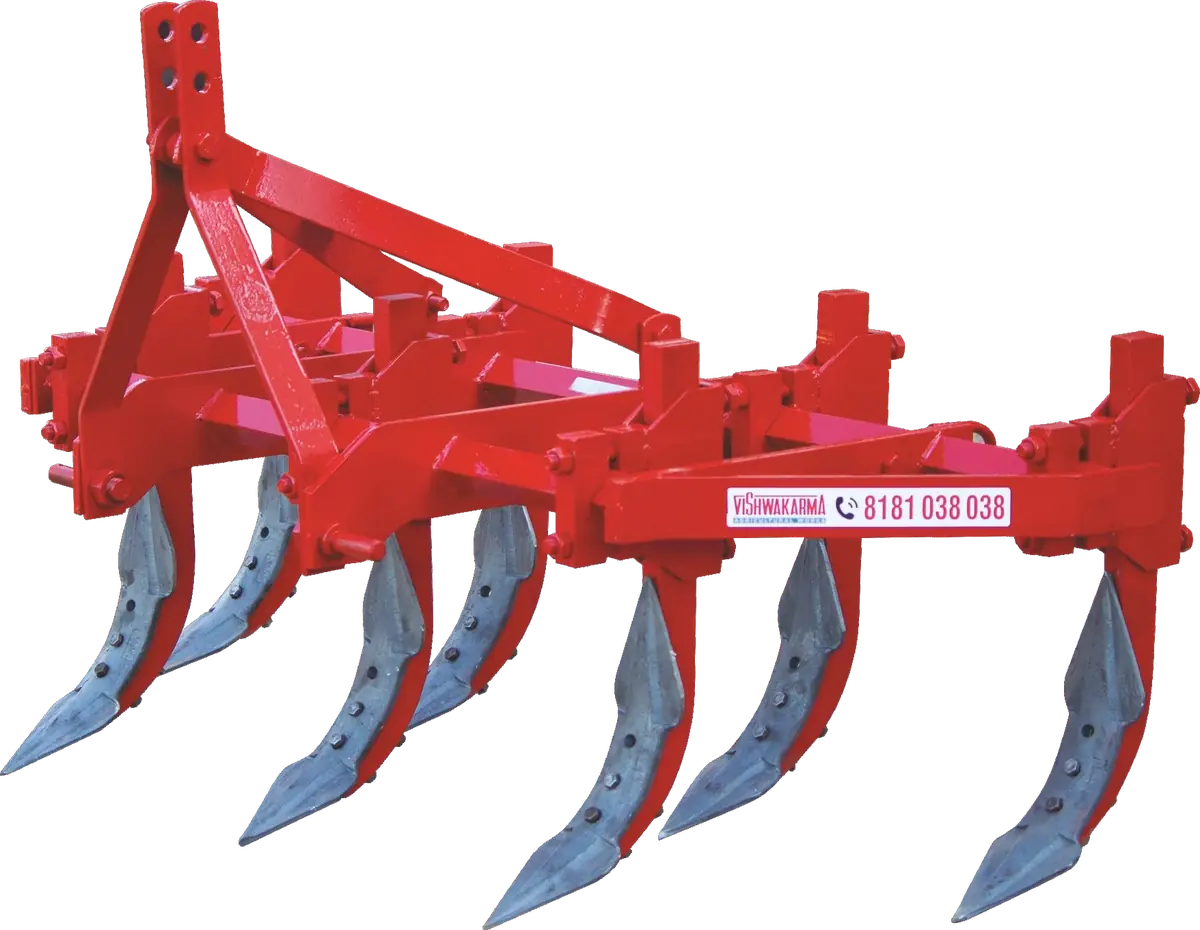

MINI Series · Rigid Type Frame
MINI Series MAC1 (Rigid Frame)
150 kg rigid-frame mini cultivator built for orchards, vegetable beds, and vineyards needing firmer downward soil bite.
Weight: 150 Kg
Tractor: 18–28 HP
Tynes: 7 (25 mm)
Cut: 59 Inch
35–40 HP

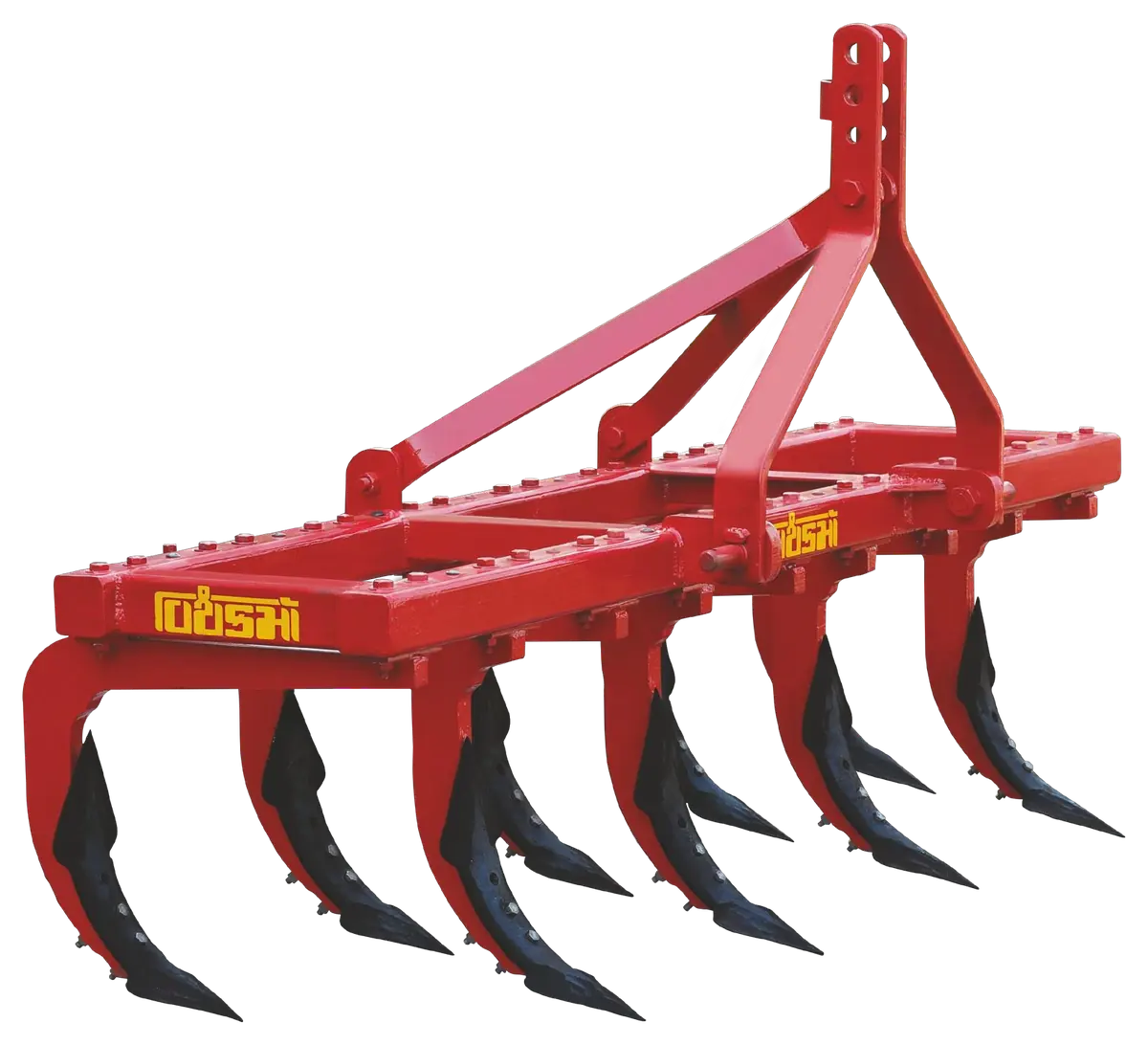

B Series · Tubular Box Frame
B Series (289B / 309B)
Durable 72x72x5 mm box frame with high torsion resistance for mid-range 35 to 40 HP tractors in regular farm preparation.
Weight: 196–200 Kg
Tractor: 35–40 HP
Tynes: 9 Tynes
Cut: 77 Inch
40+ HP

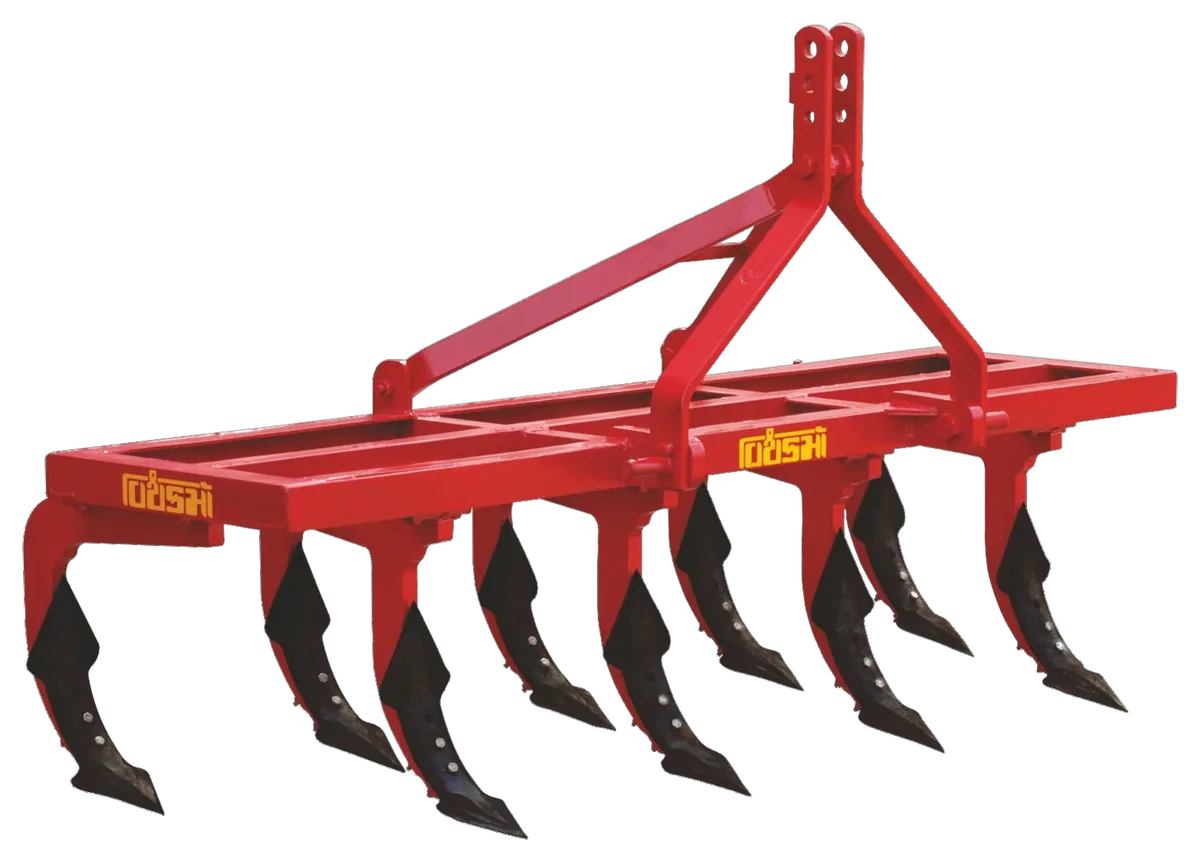

W Series · 3-Angle Trash Clearance
W Series (289W / 309W)
Features 20-inch extra clearance between front & rear tynes. Prevents crop residue and weed clogging in post-harvest soils.
Weight: 200–210 Kg
Tractor: 40 HP & Above
Tynes: 9 Tynes
Cut: 77 Inch
41+ HP

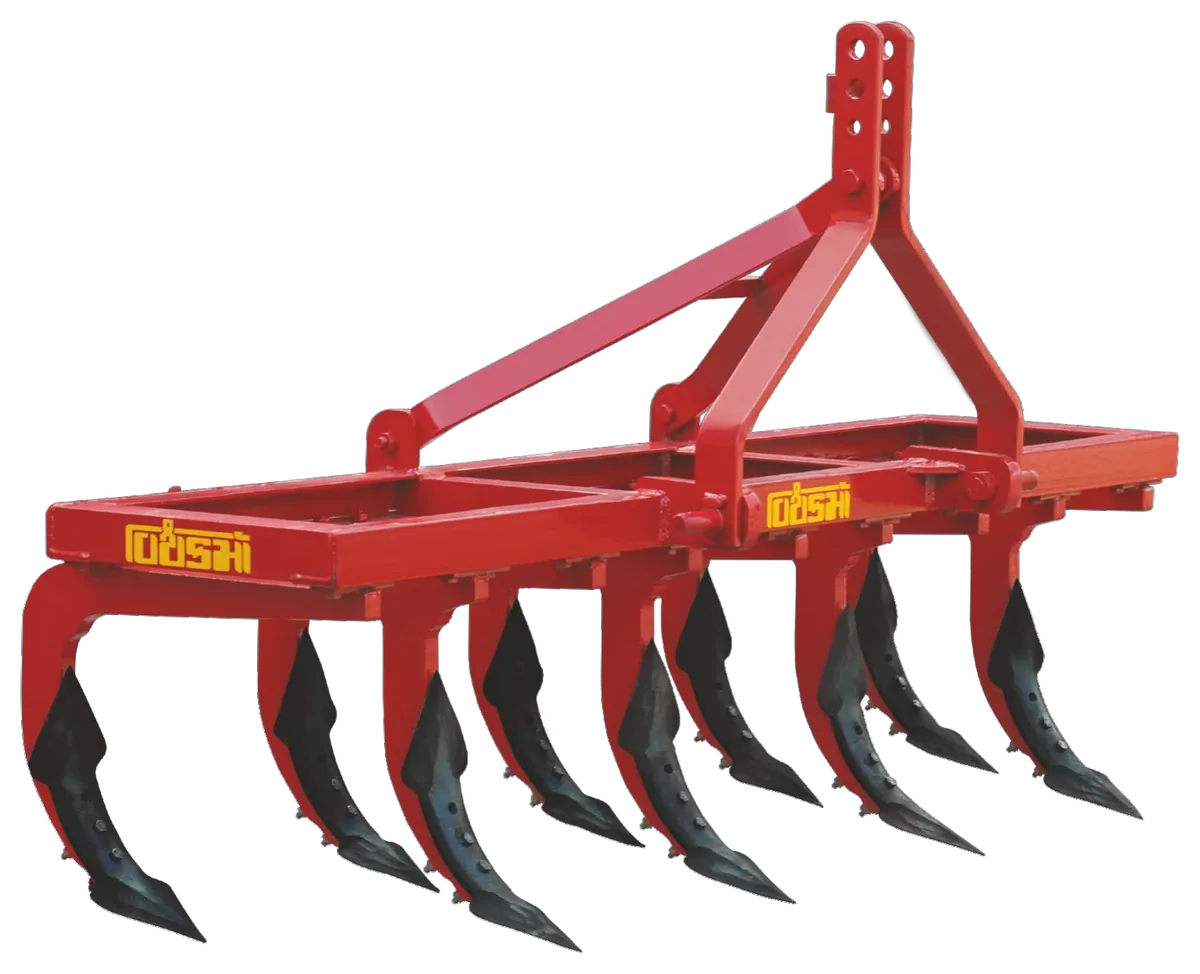

C Series · Angle Frame Economy
C Series (C25 / CLT+ / 309)
Economical angle frame construction with low draft resistance, ideal for light to medium soils and seedbed prep.
Weight: 183–193 Kg
Tractor: 41 HP & Above
Tynes: 9 Tynes
Cut: 77 Inch
Technical Matrix
Cultivator Series Specifications
Review detailed engineering dimensions, frame sizes, tine thicknesses, and weights across each model series.
Need subsidy documentation? Thanvi Enterprise provides complete FMTTI test certificates, GST invoices, and dealer delivery challans for Chhattisgarh Krishi Yantra Anudan & Odisha DBT portals.
| Parameter | YUG 15 / 30 (9T) | YUG 15X / 30X (11T Fix) | YUG 15F / 30F (11T Fold) |
|---|---|---|---|
| Tyne Thickness | 28 mm / 30 mm | 28 mm / 30 mm | 28 mm / 30 mm |
| No. of Tynes | 9 Tynes | 11 Tynes (Fixed) | 11 Tynes (Folding) |
| Frame Type | Box Type Frame | Box Type Frame | Box Type Frame |
| Front & Rear Tyne Gap | 19 Inch | 19 Inch | 19 Inch |
| Tyne Height | 18 Inch | 18 Inch | 18 Inch |
| Total Weight | 219 Kg / 225 Kg | 271 Kg / 280 Kg | 291 Kg / 297 Kg |
| Width of Cut | 77 Inch | 95 Inch | 95 Inch |
| Power Required | 40 HP & Above | 45 HP & Above | 45 HP & Above |
| Subsidy Approval | Approved by Govt. (YUG 15) | Eligible for DBT Schemes | Eligible for DBT Schemes |
| Parameter | GAJRAJ (9 Tyne) | GAJRAJ X (11T Fix) | GAJRAJ F (11T Fold) |
|---|---|---|---|
| Tyne Thickness | 30 mm | 30 mm | 30 mm |
| No. of Tynes | 9 | 11 | 11 |
| Frame Construction | 3-Support Box Frame | 3-Support Box Frame | 3-Support Box Frame |
| Front & Rear Tyne Gap | 23 Inch (Anti-Clog) | 23 Inch | 23 Inch |
| Tyne Height | 18 Inch | 18 Inch | 18 Inch |
| Total Weight | 240 Kg | 287 Kg | 303 Kg |
| Width of Cut | 77 Inch | 95 Inch | 95 Inch |
| Power Required | 42 HP & Above | 45 HP & Above | 45 HP & Above |
| Parameter | VVN9 | VVN11 | VVN13 |
|---|---|---|---|
| No. of Tynes | 9 Tynes | 11 Tynes | 13 Tynes |
| Tyne Thickness | 30 mm | 30 mm | 30 mm |
| Frame Structure | Extreme Box Type Frame (3 Heavy Central Supports) | ||
| Tyne Height | 20–22 Inch (Adjustable) | ||
| Mast Height | 46–48–50–52 Inch (Adjustable) | ||
| Total Weight | 305 Kg | 351 Kg | 400 Kg |
| Width of Cut | 91 Inch | 95 Inch | 113 Inch |
| Power Required | 45 HP & Above | 50 HP & Above | 55 HP & Above |
| Parameter | NC1 (Subsidy Approved) | MAC1 (Rigid Frame) |
|---|---|---|
| No. of Tynes | 7 Tynes | 7 Tynes |
| Tyne Thickness | 25 mm | 25 mm |
| Frame Type | Box Type Frame | Rigid Type Frame |
| Front & Rear Tyne Gap | 16.5 Inch | 14.7 Inch |
| Tyne Height | 14 Inch | 13–16 Inch |
| Total Weight | 115 Kg | 150 Kg |
| Width of Cut | 59 Inch | 59 Inch |
| Tractor HP Required | 15 to 28 HP | 18 to 28 HP |
| Subsidy Approval | Approved by Govt. for Subsidy | Standard Commercial |
| Model | Frame Type | Tyne Thickness | Weight | Tractor HP |
|---|---|---|---|---|
| 289B | Box Frame (72x72x5 mm) | 28 mm | 196 Kg | 35 HP & Above |
| 309B | Box Frame (72x72x5 mm) | 30 mm | 200 Kg | 40 HP & Above |
| 289W | 3-Angle Frame (20" Stubble Gap) | 28 mm | 200 Kg | 40 HP & Above |
| 309W | 3-Angle Frame (20" Stubble Gap) | 30 mm | 210 Kg | 40 HP & Above |
| C25 | Angle Frame | 25 mm | 183 Kg | 41 HP & Above |
| CLT PLUS | Angle Frame | 28 mm | 191 Kg | 41 HP & Above |
| 309 (C-Series) | Angle Frame | 30 mm | 193 Kg | 41 HP & Above |
| Model | RVD 11 Tyne |
|---|---|
| Tyne Thickness | 30 mm Forged Steel |
| No. of Tynes | 11 Tynes |
| Frame Construction | Heavy Box Type Frame |
| Inter-Tyne Distance | 228 mm (Adjustable) |
| Front & Rear Tyne Gap | 21 Inch |
| Tyne Height | 20–22 Inch (Adjustable) |
| Total Weight | 293 Kg |
| Width of Cut | 95 Inch |
| Power Required | 45 HP & Above |
Genuine Spares
Cultivator Wearable Parts & Field Replacements

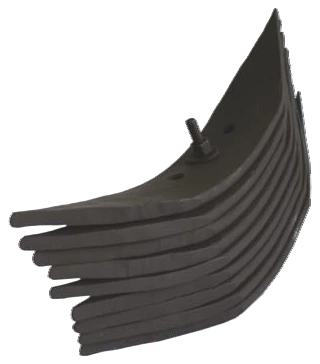

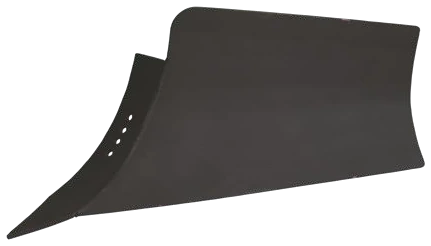

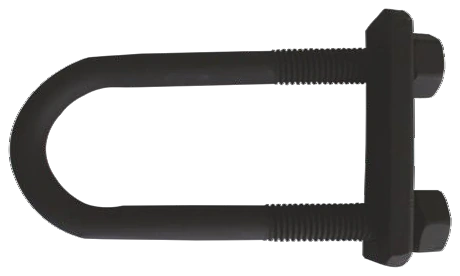

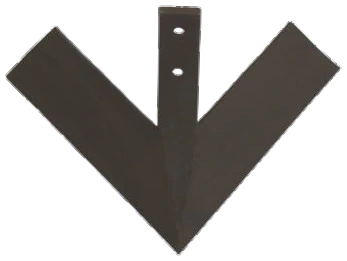

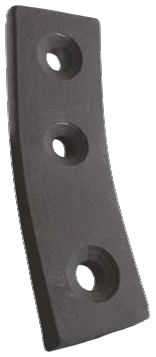

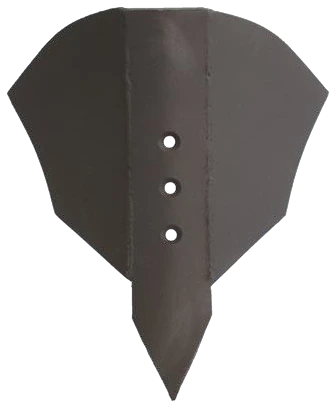

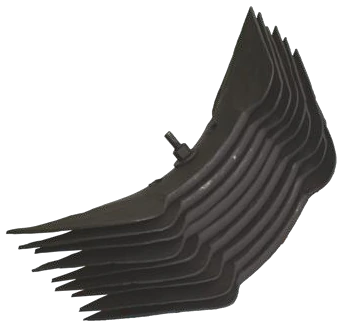

High-carbon, wear-resistant replacement points, shovels, sweeps, and clamps delivered directly to your farm.
Buyer Guide & Regional Terms
Local Search Guide • ट्रैक्टर कल्टीवेटर (Tractor Cultivator)
Quick guide on 9 tyne vs 11 tyne sizing, spring-trip mechanisms, and DBT subsidy for farmers across Chhattisgarh and Odisha.
9 टाइन कल्टीवेटर (35 to 45 HP)
The most common implement in Central India. Available in rigid channel (YUG series) and heavy box frame (GAJRAJ series). Delivers 7 to 9 inches deep secondary tilling and weed uprooting with reversible EN-42 Boron steel shovels.
11 टाइन एवं फोल्डिंग कल्टीवेटर (50+ HP)
Built for broad-acre farming with 45 to 65 HP tractors. Available in 11-tyne fixed frame and 11-tyne folding-wing models (YUG F and GAJRAJ F) that narrow down for road transport while covering maximum tillage acres per hour.
स्प्रिंग लोडेड कल्टीवेटर (Stony Soils)
The VVN and RVD series use heavy-duty double springs that automatically trip when hitting underground roots or hidden rocks, then snap back safely. Protects tractor hitches and tyne points from breaking in rocky terrain.
Popular Searches:
Tractor cultivator
9 tyne cultivator price
Spring cultivator
कल्टीवेटर
Tractor Cultivator — Frequently Asked Questions
Answers to the questions Chhattisgarh and Odisha farmers ask most.
What is the price of the Tractor Cultivator?
Pricing for the Tractor Cultivator depends on the exact model, capacity, and delivery location. Thanvi Enterprise offers factory-direct pricing with no hidden dealer markup — contact us on WhatsApp or call +91-7587054235 for a current quote in Chhattisgarh or Odisha.
What tractor HP do I need to run the Tractor Cultivator?
The right tractor HP depends on the Tractor Cultivator's working width and your soil conditions. Our team will help match the correct configuration to your tractor before purchase — share your tractor's HP rating on WhatsApp for a recommendation.
Is the Tractor Cultivator eligible for a government subsidy?
Yes. Thanvi Enterprise's FMTTI-tested agricultural machinery, including the Tractor Cultivator, is eligible for the Odisha DBT Farm Mechanization Scheme and the Chhattisgarh Krishi Yantra Anudan portal, subject to standard eligibility checks. Contact us for guidance on documentation.
Does Thanvi Enterprise provide after-sales support for the Tractor Cultivator?
Yes. As an authorized direct supplier, Thanvi Enterprise provides direct technical support, genuine spare parts, and installation guidance across Chhattisgarh and Odisha, with no multi-layer resellers involved. Contact our team for warranty terms and service coverage in your district.
What is a Tractor Cultivator used for?
Built for the hard, dry terrains of Chhattisgarh and Odisha, our tractor-mounted cultivator uses forged tines to break and prepare soil deep enough for the next sowing cycle. As an authorized direct supplier, Thanvi Enterprise prices it factory-direct with no dealer markup, and our team helps you match it to your tractor before you buy. Request a quote on WhatsApp today.
Which cultivator is best for black cotton (Kanhar) soil in Chhattisgarh?
For hard, dry Kanhar clay on a 41-50 HP tractor, the YUG 15 (9 tyne, 219 Kg) is the first choice. For heavy Kanhar clay, the GAJRAJ (240 Kg, 30 mm tynes) is stronger. On 52+ HP tractors, the GAJRAJ F 11-tyne folding model fits best. Use the Smart Tractor Matcher on this page, or message us on WhatsApp for your exact tractor.
Which cultivator suits a 35 HP tractor?
For 30-40 HP tractors, the B Series (289B / 309B, 9 tyne, 196-200 Kg, 35-42 HP) is the usual match for hard and normal soils. For fields with high crop stubble, choose the W Series (289W / 309W). Confirm the match with our team before you order.
How does the Smart Tractor Matcher choose a cultivator?
It uses your tractor HP, your soil or field condition, and your state and district. The soil is pre-selected from your district, and you can change it. You can also ask for subsidy-approved or folding models only. The result goes to our team on WhatsApp so we can share the price and subsidy details for your district.
