Gruh Udhyog Food Processing Machines & Mini Pulverizers
High-efficiency SS & MS pulverizers, dual-chamber double-stage grinders, and commercial gravy machines. Designed for spices (Haldi, Mirchi, Dhaniya), besan, sugar, ayurvedic herbs, and restaurant wet pastes. Eligible for 35% PM-FME subsidy with factory-direct support across Chhattisgarh & Odisha.
Turn Raw Farm Produce Into High-Margin Packaged Products
Selling raw turmeric, whole chilies, coriander, chana dal, or fresh garlic yields low commodity prices. By processing them locally into packaged spice powders, pure besan, or wet ginger-garlic paste, small enterprises and Self-Help Groups (SHGs) multiply their profit margins by 2x to 4x.
Thanvi Enterprise supplies heavy-duty food processing machinery engineered specifically for Indian ingredients. From compact 2 HP stainless steel pulverizers that run on standard household 220V power to 15 HP double-stage dual-chamber grinders for commercial spice brands, we deliver complete solutions backed by local stock in Raipur.
- ✔ 100% Sanitary SS304 Builds: Stainless steel pulverizers and gravy machines prevent food contamination and ensure FSSAI regulatory compliance.
- ✔ Multi-Mesh Jali System: Interchangeable screens from 0.5mm (super-fine spices/icing sugar) to 4mm (coarse botanicals and dalia).
- ✔ Govt. Subsidy Friendly: Supported under PM-FME, PMEGP, BIHAN (Chhattisgarh State Rural Livelihood Mission), and Mission Shakti (Odisha).
Commercial Pulverizers & Wet Gravy Machines
Heavy-duty food processing machines designed for spices, grains, ayurvedic herbs, and catering gravies.
Material Grinding Average (Kg Per Hour Approx)
Tested across various sieve screens on single drum, double drum, and double stage machines.
| Material | 2 HP Single | 3 HP Single/3P | 3 HP Double Drum | 5 HP (3 Phase) | 5 HP Double Drum | 7.5 HP Double Stage | 15 HP Double Stage |
|---|---|---|---|---|---|---|---|
| Wheat (Gehu) | 20 to 25 Kg | 30 to 35 Kg | 35 to 45 Kg | 35 to 40 Kg | 40 to 45 Kg | 80 to 100 Kg | 140 to 170 Kg |
| Juwar | 25 Kg | 30 Kg | 30 Kg | 40 Kg | 40 Kg | 80 to 95 Kg | 130 to 160 Kg |
| Millet (Bajra) | 20 Kg | 30 Kg | 30 Kg | 40 Kg | 40 Kg | 80 to 95 Kg | 130 to 160 Kg |
| Maize (Makka) | 20 Kg | 25 Kg | 25 Kg | 35 Kg | 35 Kg | 75 to 90 Kg | 125 to 150 Kg |
| Rice (Chawal) | 20 Kg | 15 Kg | 15 Kg | 25 Kg | 25 Kg | 70 to 85 Kg | 120 to 145 Kg |
| Besan (Chana Dal) | 50 Kg | 60 Kg | 60 Kg | 75 Kg | 75 Kg | 100 to 120 Kg | 150 to 180 Kg |
| Rawa / Suji | 65 Kg | 80 Kg | 80 Kg | 100 Kg | 100 Kg | 120 to 140 Kg | 160 to 200 Kg |
| Sugar (Icing Sugar) | 70 Kg | 80 Kg | 80 Kg | 100 Kg | 100 Kg | 130 to 150 Kg | 170 to 220 Kg |
| Black Pepper / Spices | 25 Kg | 30 Kg | 30 Kg | 40 Kg | 40 Kg | 80 to 100 Kg | 140 to 160 Kg |
| Amla & Dry Herbs | 20 Kg | 25 Kg | 25 Kg | 35 Kg | 35 Kg | 70 to 85 Kg | 110 to 140 Kg |
*Actual throughput varies depending on raw material moisture content, screen jali mesh, and line voltage.
Gruh Udhyog Machine & Mesh Matcher
Select your raw material, target hourly production, and electrical line to discover the exact recommended pulverizer or gravy machine.
Gruh Udhyog Machine Technical Specifications
Engineering parameters across SS pulverizers, MS grinders, double-stage systems, and gravy machines.
| Series & Model | Motor Power | Operating RPM | Chamber Size | Beaters / Blades | Bearings | Approx Output |
|---|---|---|---|---|---|---|
| 2 HP SS Pulverizer | 2 HP Single Phase | 2800 RPM | Sanitary SS Chamber | SS Beater Rotor | SKF Deep Groove | 20 to 25 Kg/Hr |
| 3 HP SS Pulverizer | 3 HP (1P / 3P) | 2800 RPM | Sanitary SS Chamber | SS Beater Rotor | SKF Deep Groove | 30 to 45 Kg/Hr |
| 2 HP SS Gravy Machine | 2 HP Single Phase | 2800 RPM | Stainless Steel Cutter Head | High-Speed SS Wet Knives | Sealed Heavy Bearing | 30 to 50 Kg/Hr |
| 3 HP SS Gravy Machine | 3 HP (1P / 3P) | 2800 RPM | Heavy SS Cutter Head | Adjustable Clearance Knives | Sealed Heavy Bearing | 60 to 100 Kg/Hr |
| 3 HP Mini Rice Mill | 3 HP Single Phase (220V) | 2800 RPM | Milling Roller Chamber | Steel Roller & Sieve Mesh | Sealed Heavy Bearing | 100 to 120 Kg/Hr |

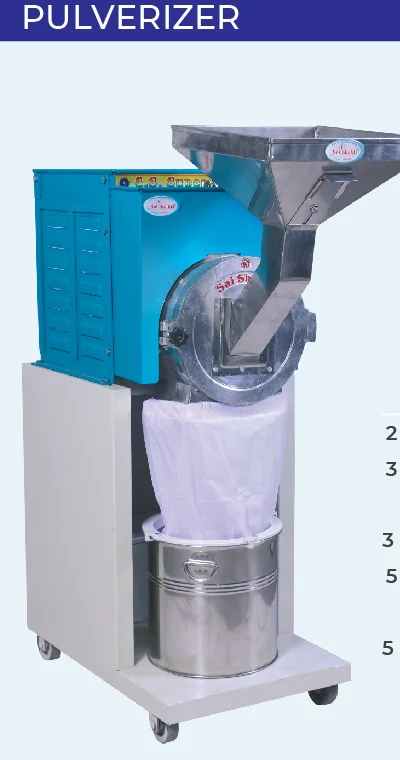

| 3 HP MS Double Drum | 3 HP (1P / 3P) | 2800 RPM | Dual Drum Chamber | Dual Impact Beaters | SKF Deep Groove | 35 to 80 Kg/Hr |
| 5 HP MS Double Drum | 5 HP (1P / 3P) | 2800 RPM | Heavy MS Dual Chamber | Hardened Steel Beaters | SKF Deep Groove | 40 to 100 Kg/Hr |
| 7.5 HP Double Stage | 7.5 HP 3 Phase | 4200 RPM | 11.5 x 5 + 9.5 x 4 | 6 + 4 Heavy Beaters | 6308 SKF | 80 to 100 Kg/Hr |
| 10 HP Double Stage | 10 HP 3 Phase | 4200 RPM | 14 x 5.5 + 9.5 x 4 | 6 + 4 Heavy Beaters | 6308 SKF | 120 to 140 Kg/Hr |
| 15 HP Double Stage | 15 HP 3 Phase | 4200 RPM | 16 x 6 + 9.5 x 4 | 6 + 4 Heavy Beaters | 6308 SKF | 140 to 170 Kg/Hr |
Government Subsidy Support (PM-FME & PMEGP)
Avail up to 35% capital subsidy on food processing machinery for rural and urban micro-enterprises.
Pradhan Mantri Formalisation of Micro Food Processing
Provides a 35% credit-linked capital subsidy (maximum ₹10 Lakhs) for micro food processing units including spice grinding, besan making, flour packaging, and pickle/chutney processing. Thanvi Enterprise prepares bankable machinery quotation sheets and specification files.
Rural Self-Help Groups (BIHAN & Mission Shakti)
Women Self-Help Groups (Mahila Mandals) under Chhattisgarh BIHAN and Odisha Mission Shakti can access concessional micro-loans and 25%–35% subsidies to install mini pulverizers and gravy machines in village clusters.
Looking for Traditional Stone Flour Mills (Atta Chakki)?
Explore our 10-inch to 18-inch Open Type Stone Flour Mills for village atta shops and marginal farmers. Single-phase 1.5HP to 10HP heavy-duty emery stone mills.
Local Search Guide • गृह उद्योग एवं फूड प्रोसेसिंग मशीन
Practical guide on spice pulverizers, gravy machines, and PM-FME credit subsidies for micro-enterprises in Raipur, CG & Odisha.

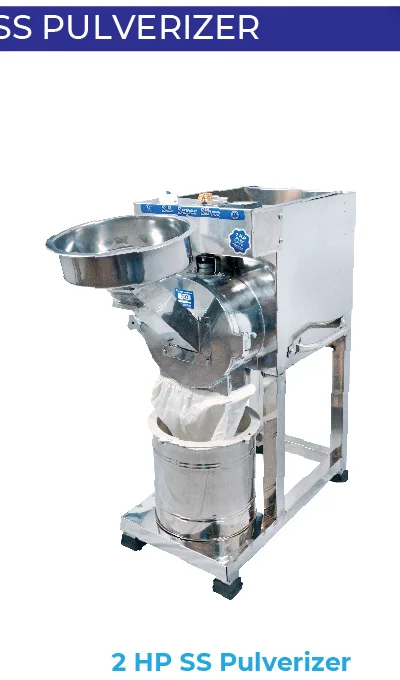

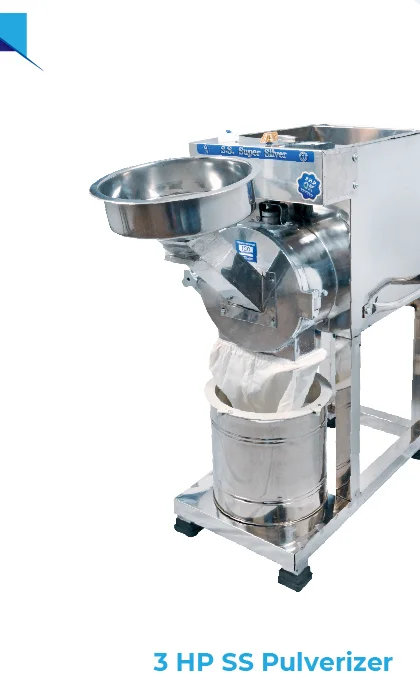

2 HP & 3 HP SS मिनी पल्वेलाइजर (Food-Grade)
Ideal for home spice brands and Mahila Samooh (SHGs). 100% stainless steel contact parts comply with FSSAI regulations. Grinds 20 to 45 kg/hr of turmeric (haldi), chili (mirchi), and coriander (dhaniya) with interchangeable 0.5 to 3mm sieves.

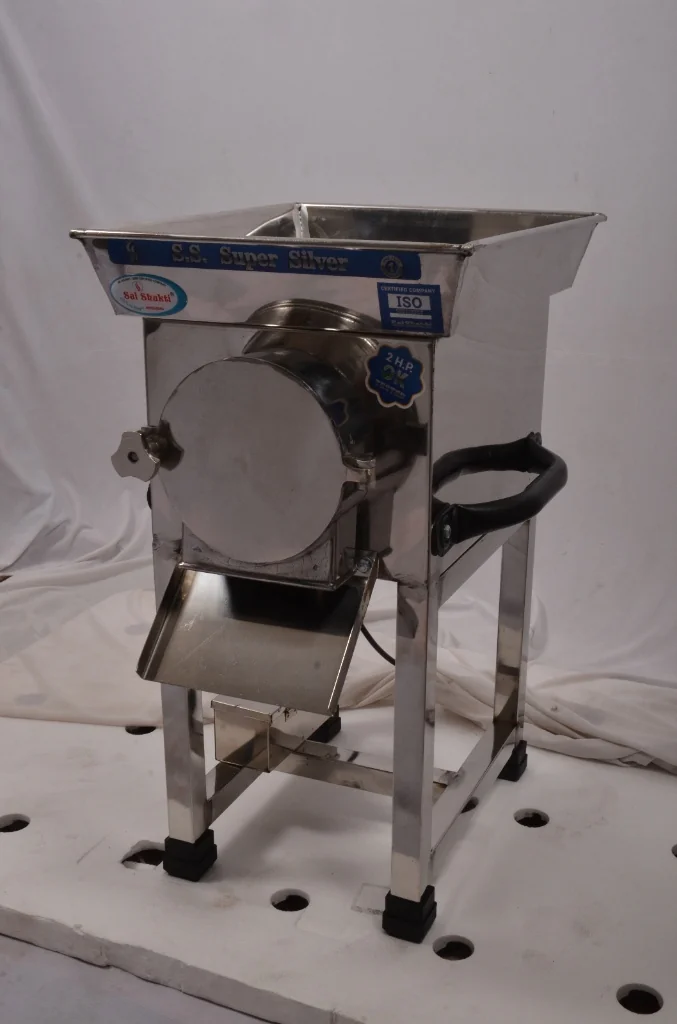

कमर्शियल ग्रेवी मशीन (Ginger-Garlic & Puree)
Heavy-duty wet grinding workhorse for dhabas, hotel caterers, and packaged paste manufacturers. Rotary cutter heads deliver 30 to 100 kg/hr smooth puree from ginger, garlic, tomatoes, onions, and soaked pulses without burning.

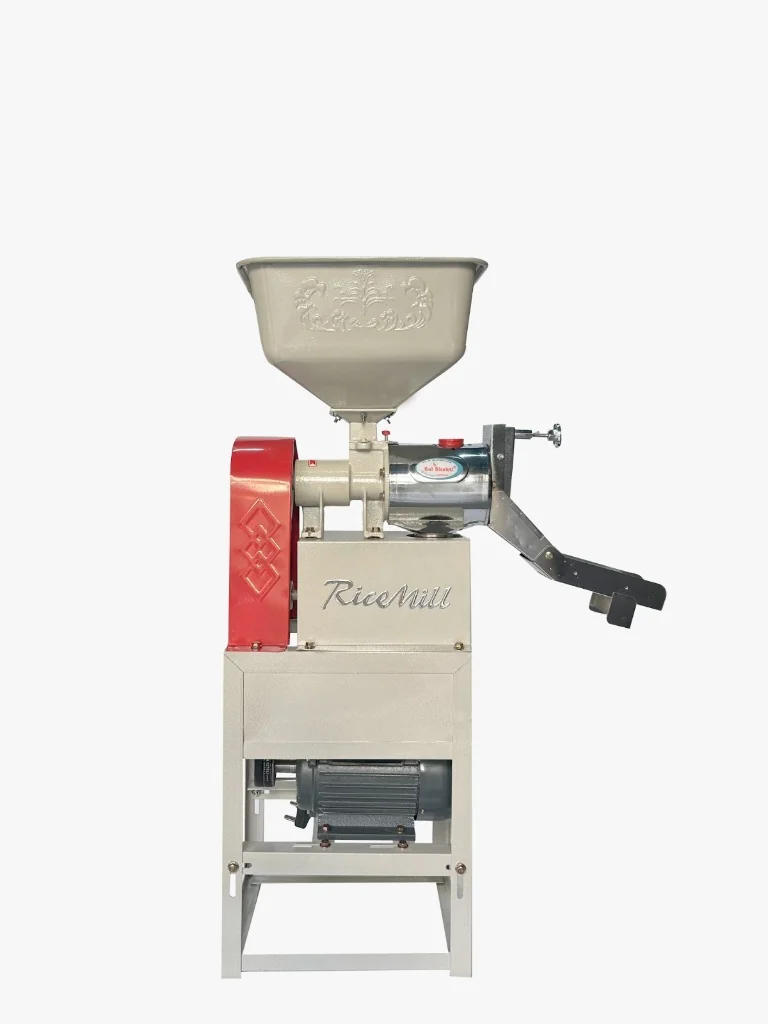

3 HP मिनी राइस मिल (Paddy to Polished Rice)
Ideal for village custom milling and rural micro-entrepreneurs. Runs on standard 220V single-phase power, husking and polishing 100 to 120 kg/hr of paddy into clean white rice with separate husk discharge for cattle feed.
PM-FME & PMEGP 35% सब्सिडी सपोर्ट
Eligible for up to 35% capital subsidy (max ₹10 Lakhs) under the Pradhan Mantri Formalisation of Micro food processing Enterprises Scheme. Thanvi Enterprise supplies formal GST quotations, motor test records, and project invoices directly from Raipur.
Frequently Asked Questions
What is the best machine for a home-based spice grinding Gruh Udhyog business?
For small spice grinding startups and women self-help groups (SHGs), the 2 HP or 3 HP SS Food-Grade Pulverizer is ideal. It runs on standard 220V single-phase electricity, features 100% food-grade stainless steel contact parts for FSSAI compliance, and grinds turmeric (haldi), dry red chili (mirchi), and coriander (dhaniya) into fine aromatic powder without burning or color loss.
Can the commercial gravy machine grind ginger-garlic paste and tomato puree?
Yes. The 2 HP and 3 HP Commercial Stainless Steel Gravy Machines are specially built for high-speed wet pureeing. They pulverize fibrous ginger, peeled garlic, fresh tomatoes, onions, soaked pulses, and coconut into fine restaurant-grade pastes at rates ranging from 30 to 100 kg/hr.

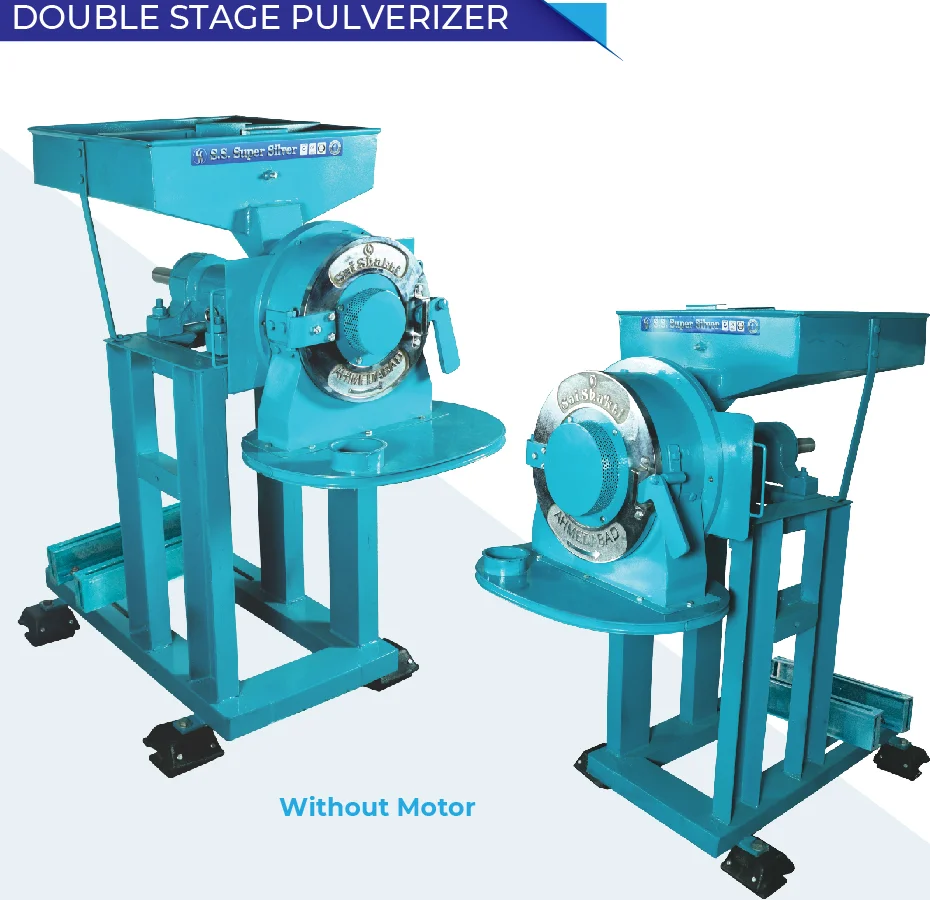

What are the benefits of a Double Stage Pulverizer over a single-stage machine?
A double-stage pulverizer features two interconnected grinding chambers (primary coarse crusher + secondary fine pulverizing chamber). It operates at 4200 RPM, allowing hard, uncrushed whole raw turmeric fingers, mineral herbs, and tough grains to be fed directly without pre-crushing, doubling output efficiency and producing ultra-fine mesh powder in a single pass.
What is the capacity and power requirement of the 3 HP Mini Rice Mill?
The 3 HP Mini Rice Mill operates on standard 220V/230V single-phase domestic electricity and processes 100 to 120 kg of raw paddy per hour. It automatically separates clean, polished white rice and fine husk/bran in a single pass without breaking kernels, making it perfect for village custom milling and micro-enterprises.
Are these food processing machines eligible for the PM-FME government subsidy?
Yes. Micro food enterprises, individual entrepreneurs, and SHGs investing in spice grinding, besan making, and packaged food processing machinery are eligible for a 35% credit-linked capital subsidy (up to ₹10 Lakhs) under the Pradhan Mantri Formalisation of Micro food processing Enterprises Scheme (PM-FME). Thanvi Enterprise provides official GST tax invoices, project machine quotations, and motor test certificates for bank loan approvals.
Where can we inspect and test these machines before purchase?
Buyers are welcome to visit Thanvi Enterprise at Block No - 14, Transport Nagar, GR - 82, Rawabhata, Raipur, Chhattisgarh. You can inspect machine builds, examine stainless steel sieve sets, and discuss custom motor configurations directly with our technical team.
Get Your Gruh Udhyog Machine Quote Today
Tell us your raw material processing needs (spices, besan, wet gravy) and district in Chhattisgarh or Odisha. We'll provide factory-direct pricing, PM-FME subsidy documentation, and express dispatch details.
